BluePrint Small Block Ford 347 ci EFI Crate Engine 415 HP BP3479CTF
A small block Ford crate engine from BluePrint Engines, rated at 415 HP, part number BP3479CTF. See the full description below for specifications and included parts.
Browse more small block Ford crate engines or compare dressing levels in our long block vs short block guide. Ships for a flat $75 to any US state (shipping policy). Read our 347 stroker engine guide.

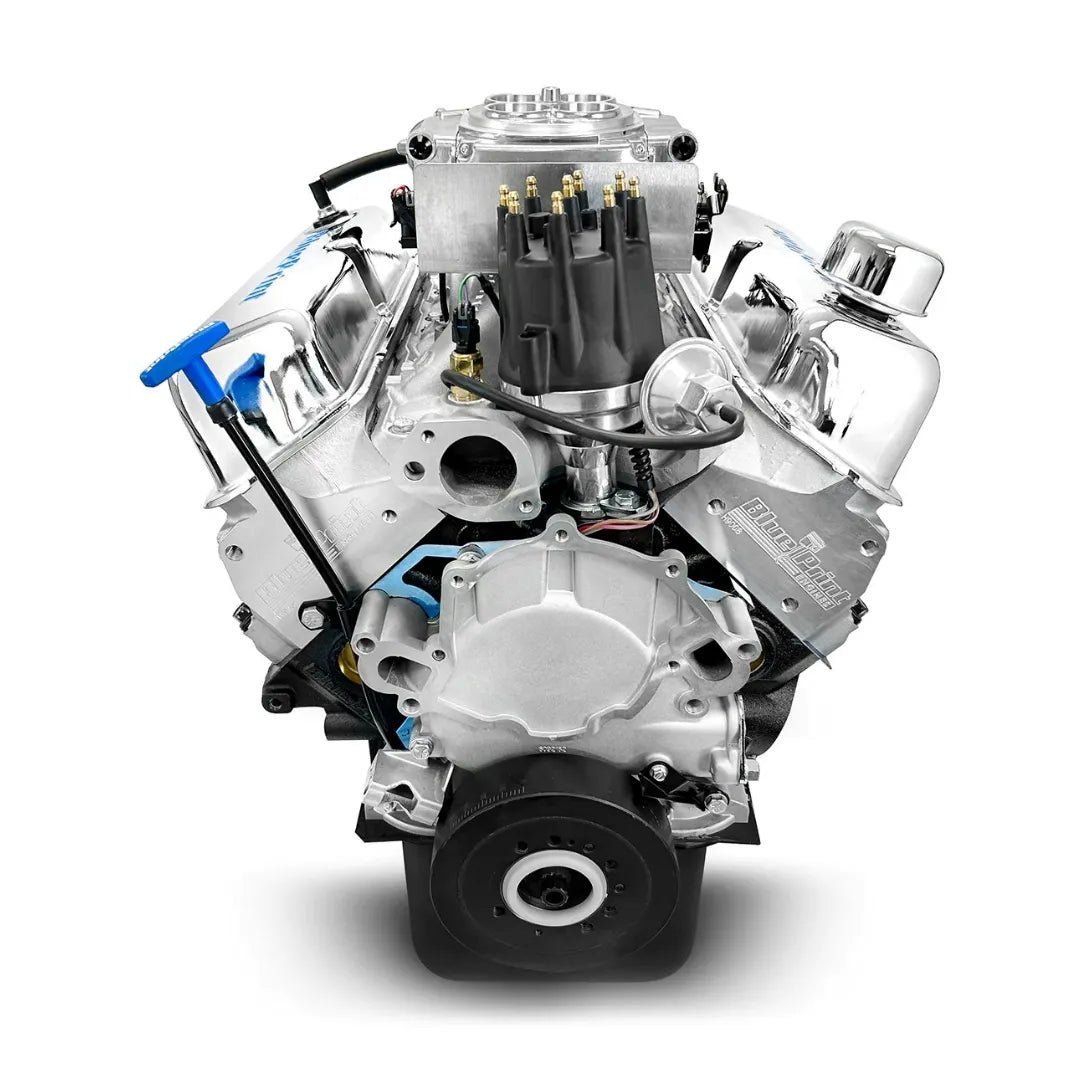

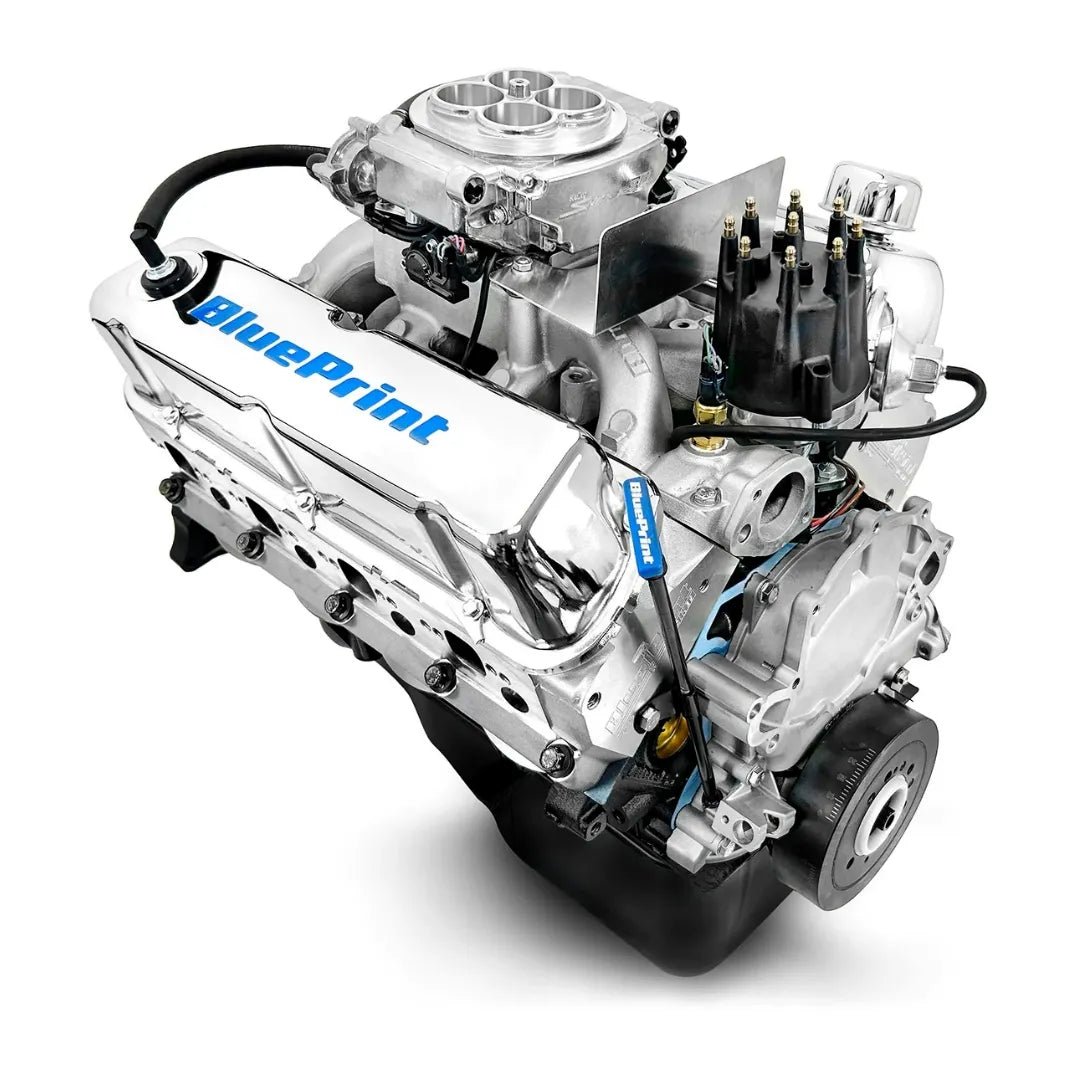

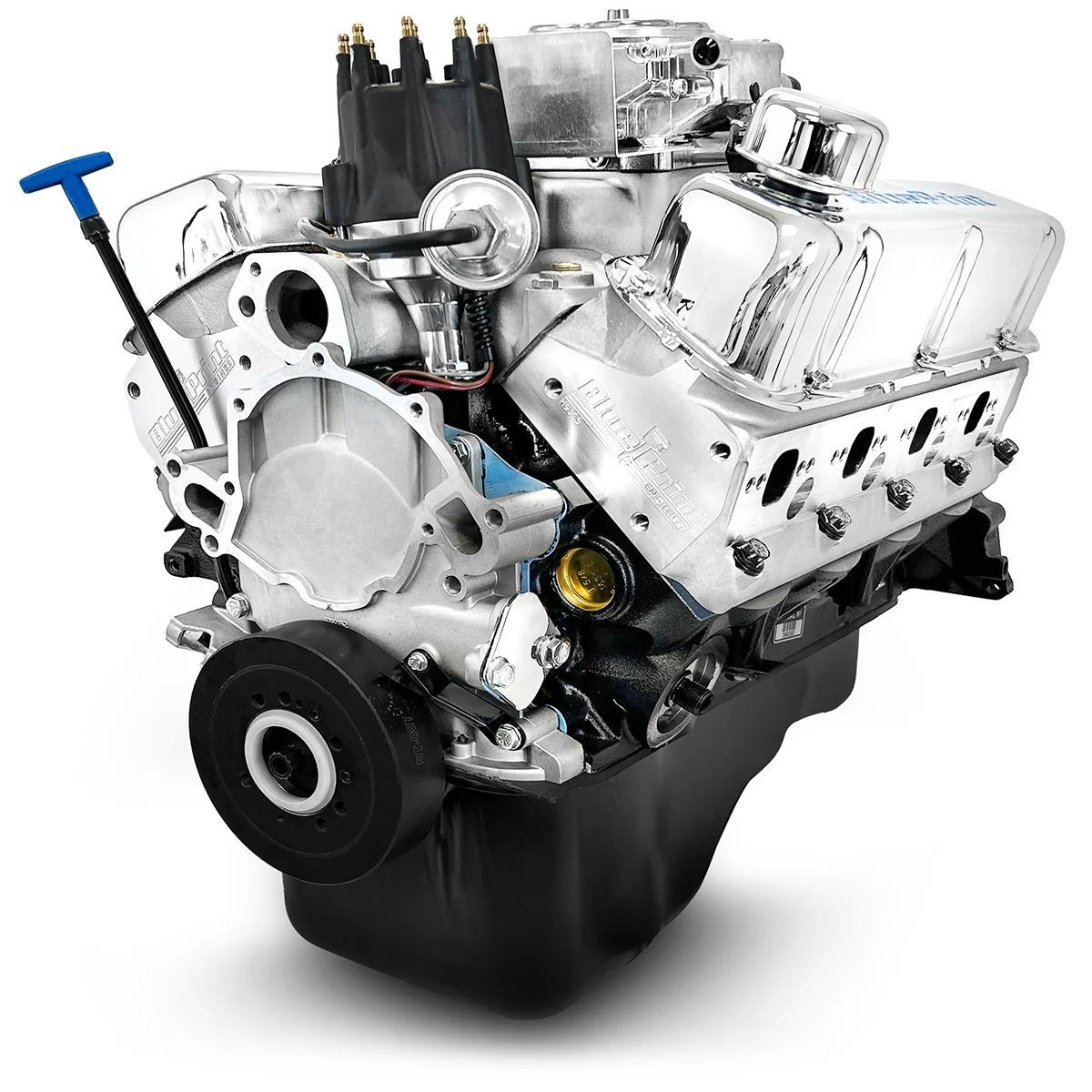

347 ci / 415 HP Small Block Ford EFI Dressed Crate Engine
For the Ford enthusiast, this versatile 347 cubic inch crate engine features a high-strength, four-bolt main cast iron block fitted with 3.400″ stroke crankshaft, forged 10:1 pistons, front sump oil pan, harmonic balancer, and hydraulic roller camshaft. Block is topped with a set of aluminum cylinder heads, intake manifold, distributor, and EFI system.
Note: Timing cover is designed for a standard rotation water pump and pulley kit only. Rotating assembly is externally balanced with a 28-oz. counterweight.
Crate Engine – Base Dressed Engine – 347 Cubic Inch – 415 HP – Small Block Ford – Sold as Each – Brand: BluePrint Engines – Part Number: BP3479CTF
Specifications
|
Brand
|
BluePrint Engines
|
|
Part Number
|
BP3479CTF
|
|
Assembly Style
|
Complete
|
|
Displacement
|
347 CID
|
|
Horsepower
|
415 HP
|
|
Torque
|
415 FT/LB
|
|
Compression Ratio
|
10 to 1
|
|
Main Bolt Style
|
4 Bolt
|
|
Main Seal Style
|
1 Piece
|
|
Block Material
|
Cast Iron
|
|
Cylinder Heads Included
|
Yes
|
|
Cylinder Head Material
|
Aluminum
|
|
Cylinder Head Chamber Volume
|
60 cc
|
|
Stroke
|
3.4 in
|
|
Crankshaft Material
|
Forged
|
|
Piston Material
|
Forged
|
|
Balance Front
|
External
|
|
Balance Rear
|
External
|
|
External Balance Weight Front
|
28 oz
|
|
External Balance Weight Rear
|
28 oz
|
|
Camshaft Style
|
Hydraulic Roller
|
|
Intake Manifold Included
|
Yes
|
|
Distributor Included
|
Yes
|
|
Spark Plug Wires Included
|
No
|
|
Oil Pan Included
|
Yes
|
|
Sump Location
|
Front
|
|
Valve Covers Included
|
Yes
|
|
Timing Cover Included
|
Yes
|
|
Water Pump Included
|
No
|
|
Carburetor Included
|
No
|
|
EFI Included
|
Yes
|
|
Air Cleaner Included
|
No
|
|
Harmonic Balancer Included
|
Yes
|
|
Quantity
|
Each
|
